Custom Size Mini Glass Tempering Machine 5 - 19mm Glass Thickness 19 Loads / H

Name: Custom Size Mini Glass Tempering Machine 5 19mm Glass Thickness 19 Loads H
Brand: AUTO
Price: 1 USD

Custom Size Mini Glass Tempering Machine 5 - 19mm Glass Thickness 19 Loads / H Manufactures

Brand Name : AUTO

Model Number : AT-TAQ 2450

Certification : CE, 3C,

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 SETS/YEAR

Delivery Time : 2-4 MONTHS

Packaging Details : Export Safety Package

Max.Glass : 2440*5000mm

Glass Thickness : 5-19mm

After-sales Service : Free Installation, Debugging, Training, Maintenance And Repair Service

Warranty : 1 YEAR

Application : Architecture, Furniture, Automobile, Household Appliance, Solar Energy

Productivity : 19 Loads/H

Name : Mini glass tempering machine

Contact Now

Custom Size Mini Glass Tempering Machine 5 - 19mm Glass Thickness 19 Loads / H

Technical Introduction

This glass tempering machine is consisted of Loading section, Heating section, Flat Tempering/Quenching section, Unloading section, Blower System and Control System. The glass sheet enters into heating oven from loading table, and tempered & cooled in flat quench & cooling section after heating. It goes to unloading table to finish process.

A) Loading Zone

• Silicone Rubber rollers for non-scratch loading
• Available with side loading roller
• Pneumatic nested castor table for glass rotation
• Foot pedal advance
• Computer controlled entrance speed

B ) Heating Zone

• State of the art energy saving insulation
• Individualized multi-point heating zones
• High Accuracy thermocouples
• Auxiliary heaters at entrance and exit
• Computer Controlled movement displacement
• Included Forced Air Convection
• Protected lower heating elements
• Centralized electric connections

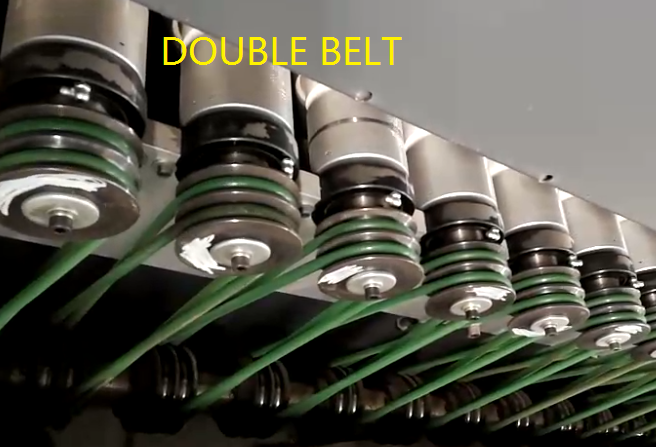

• Double belt roller drives for ceramic rollers
• Included SO2 gas dissemination system
• Computer controlled heating mapping

C ) Quenching Zone

• Siemens controlled blower speeds for air pressure regulation
• Independently controlled upper and lower air knives (distance to glass)
• Energy saving idle-to-full ramp blower function Air Flow
• Oscillation speed & distances controlled by computer
• Perfect air flow control
• Kevlar wrapped transmission rollers
• Acoustic Dampening enclosure

D ) Unloading Zone

• Silicone Rubber rollers for safe unloading
• Safety optical switch at end of table to stop glass fallout
• Inspection lights

Product Description

Support Custom Size Mini glass tempering machine

Application

AT-TAQ series Glass Tempering Machine is mainly used for building glass, architecture glass, home appliances glass, furniture glass, decorative glass, automobile glass ,trains glass ,ships glass etc.
Custom Size Mini Glass Tempering Machine 5 - 19mm Glass Thickness 19 Loads / H

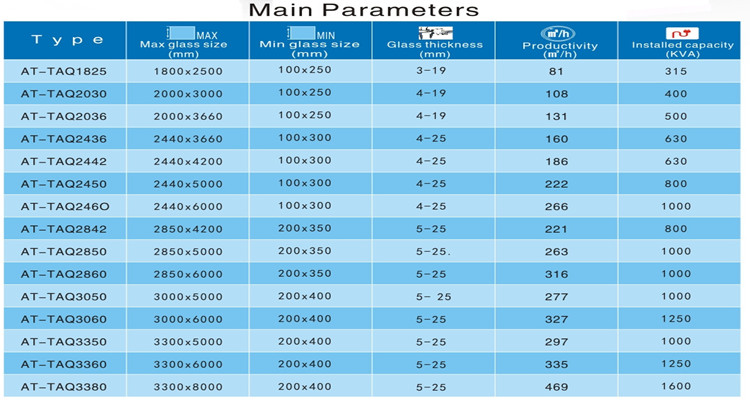

Main Parameters

Custom Size Mini Glass Tempering Machine 5 - 19mm Glass Thickness 19 Loads / H

Detailed Images

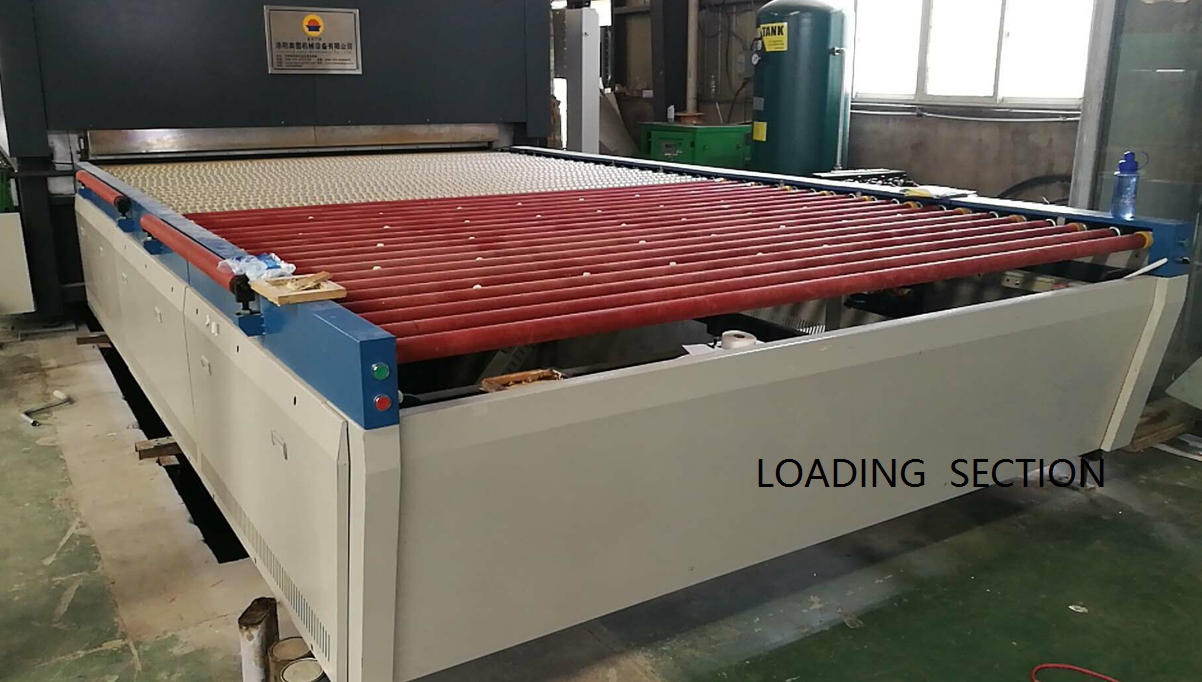

Loading Section

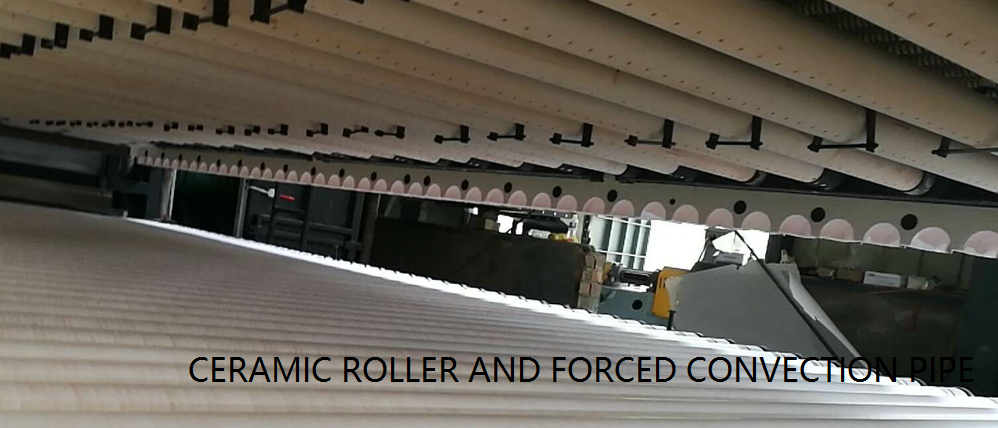

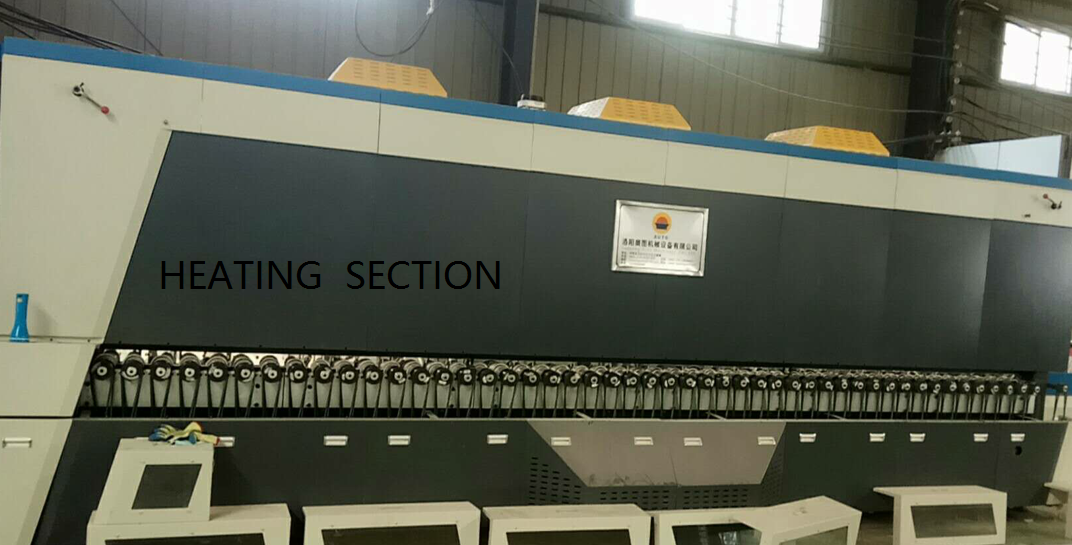

Heating Section

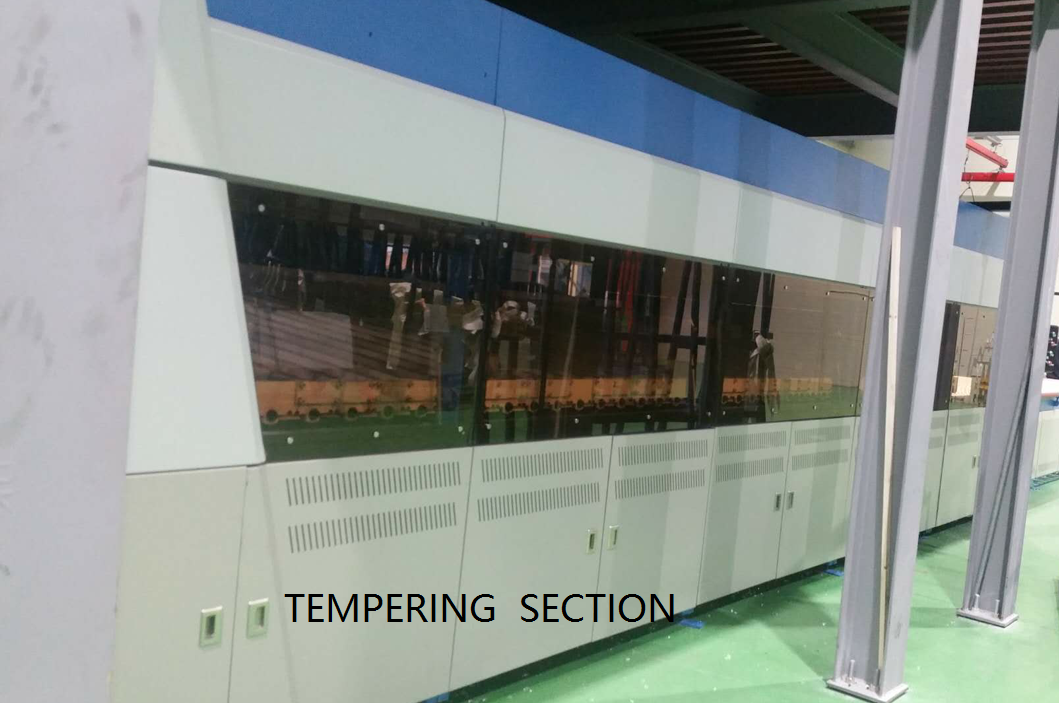

Quenching (Tempering and cooling) section

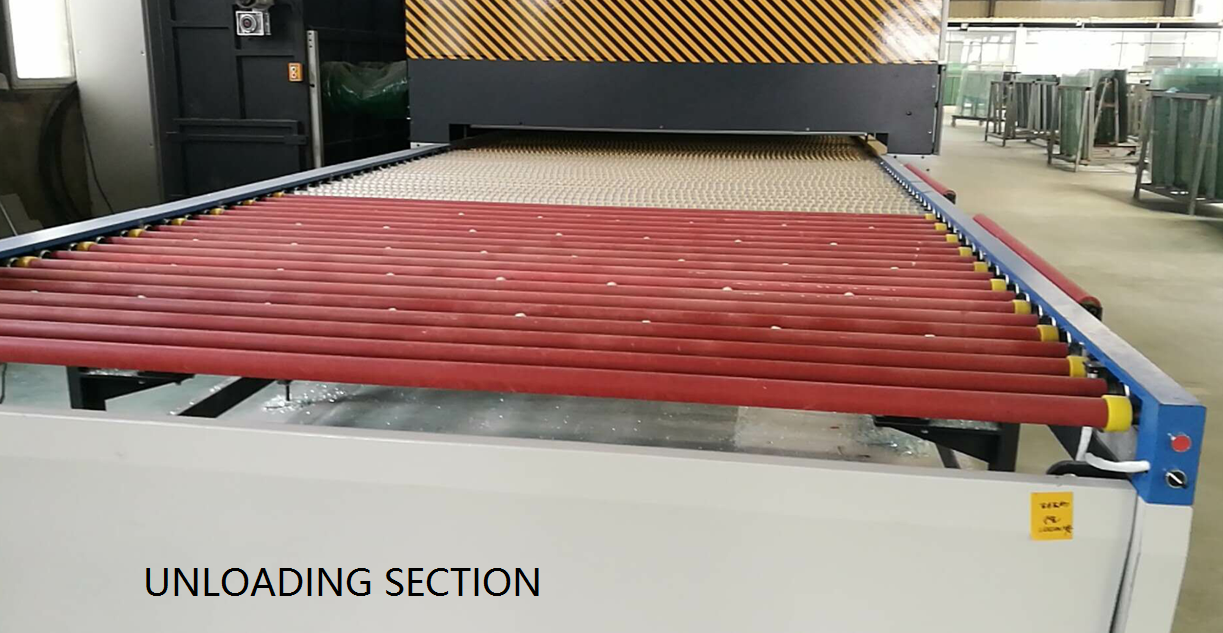

Unloading Section

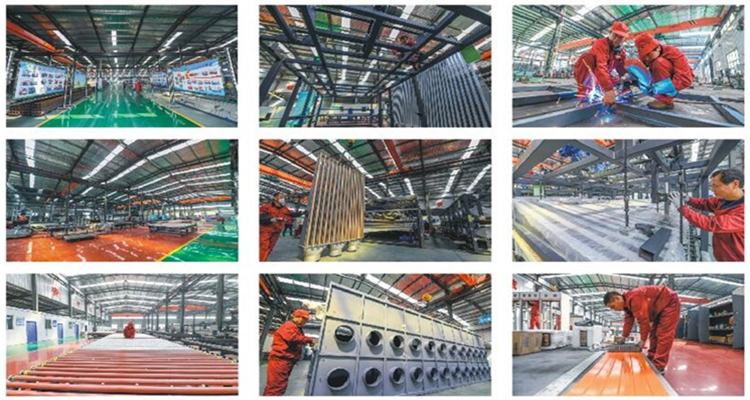

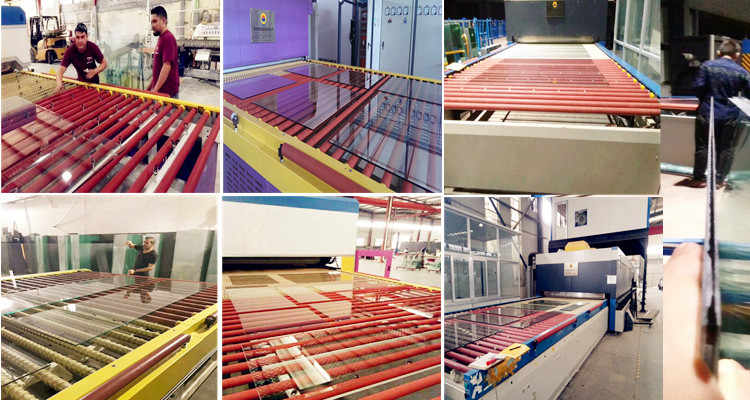

Production Process

Custom Size Mini Glass Tempering Machine 5 - 19mm Glass Thickness 19 Loads / H

Company Information

Custom Size Mini Glass Tempering Machine 5 - 19mm Glass Thickness 19 Loads / H

Buying Guides

How to make an inquiry of glass tempering machine?
We will need following information to make an offer and suggestions for your project:

1.Max. and Min. glass size of glass to be processed
2.Glass thickness range, especially the min. glass thickness
3.Glass type:Flat & Bend
4.Output requirement: m2/shift
5.Power (Voltage and frequency)
6.if make low e tempered glass?
7.Or tell your requirement we will recommend suitable machines to you!

If you are interested in our glass tempering furnace, please feel free to contact us.
